How to Install a Real Stone Fountain with an Underground Basin

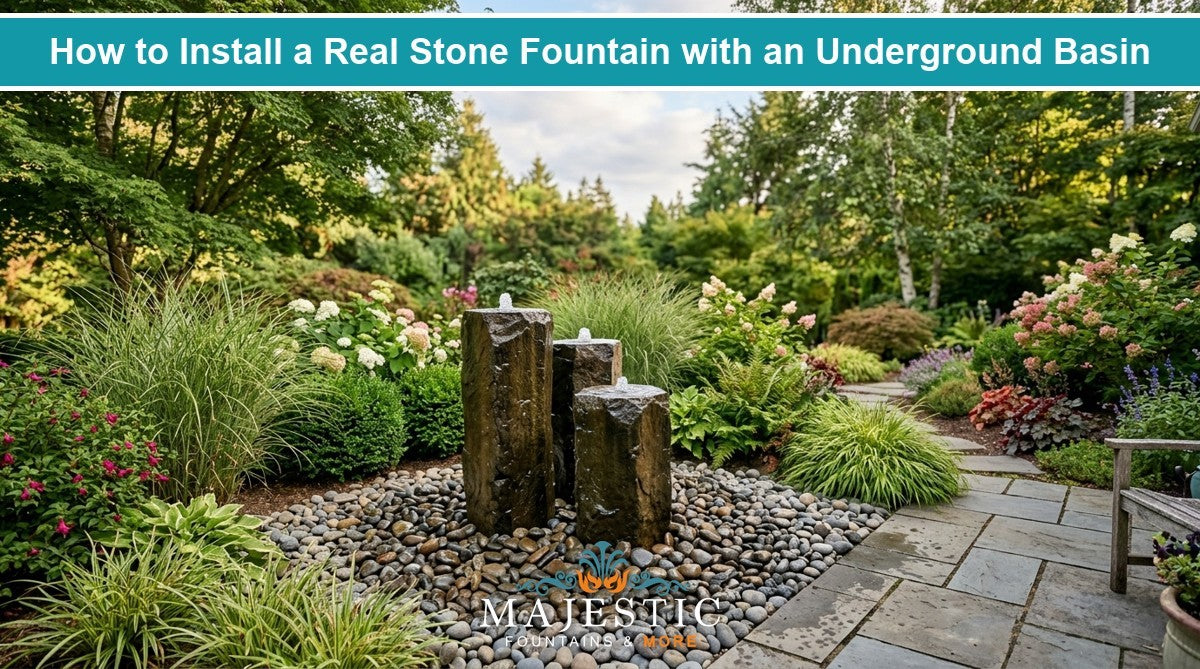

> How to install a real stone fountain with an underground basin - basalt columns bubbling over river pebbles in a landscaped garden - Majestic Fountains

Some of the most striking fountains do not sit in a bowl at all. Tall basalt columns, drilled boulders, and real-stone spouts appear to bubble water straight out of the ground. The water vanishes at the base and recirculates from a reservoir hidden below. There is no open pool to see, which makes these pondless fountains clean, safe around children and pets, and wonderfully low-maintenance. Installing one is a satisfying weekend project. Here is exactly how.

Installing a fountain that sits on top of the ground instead? See our guide to installing a fountain on level ground.

What is an underground-basin (pondless) fountain?

A real-stone column or boulder sits on a sturdy grate over a reservoir buried in the ground. A submersible pump inside the reservoir pushes water up through the drilled center of the stone; the water sheets down the sides, drains through the grate, and returns to the reservoir to be used again. A layer of decorative river pebbles hides the grate, so all you see is stone and moving water.

  • Safe and clean. No open, standing water — the reservoir is covered by the grate and pebbles.
  • Low maintenance. Less evaporation than an open basin, and the mechanicals stay hidden and protected.
  • Natural look. The stone appears to rise straight from the garden bed.

What you will need

  • The underground basin (reservoir) and grate — included with the fountain kit
  • A submersible pump and flexible tubing
  • Your real-stone column(s) or boulder, pre-drilled for the water line
  • A long spirit level (a water level helps on a wide basin)
  • A shovel, a wheelbarrow, and a hand tamper
  • Coarse sand and gravel or base-rock
  • Decorative river pebbles to finish over the grate
  • A grounded outdoor (GFCI) outlet within reach

Step-by-step installation

1Lay out and mark the basin area

Set the reservoir where you want the fountain and outline it on the ground, a little wider than the basin, so you know exactly where to dig.

Marking the outline of the underground fountain reservoir on the ground
Mark the basin footprint slightly wider than the reservoir.
2Prep and excavate to size and depth

Dig the hole a little larger and deeper than the reservoir, keeping the bottom flat. Set the soil aside for backfilling later.

Excavated hole with the black fountain reservoir set into the ground
Excavate a flat-bottomed hole slightly larger than the reservoir.
3Position the reservoir and get it level

Lower the reservoir into the hole and lay a level across the top. Adjust the bed underneath — adding or removing a little sand — until the bubble reads centered in every direction. This is the make-or-break step: a level reservoir sends water back evenly and keeps the columns looking balanced.

A red spirit level laid across the reservoir grate in the hole, checking it is perfectly level
Get the reservoir dead level before you go any further.
4Backfill around the basin

Pack sand or soil firmly around the sides of the reservoir so it cannot shift, keeping the top flush with the surrounding grade.

The reservoir grate sitting flush with the ground after backfilling around the basin
Backfill so the reservoir is fully supported and the grate sits flush.
5Install the pump

Set the submersible pump inside the reservoir and run its tubing up toward where the stone will sit. Route the cord toward your GFCI outlet — the fountain recirculates its own water, so it needs power but no plumbing.

6Set the grate

Lower the grate over the reservoir. It carries the full weight of the stone above, so make sure it seats squarely and is fully supported at the edges.

Two installers lowering the grate over the buried fountain reservoir
The grate spans the reservoir and carries the weight of the stone.
7Set the stone and connect the standpipe

Position the column(s) or boulder on the grate, feed the tubing up through the drilled center of the stone, and connect it to the pump. The stone is heavy — use a helper and set it down carefully.

Setting real basalt stone columns onto the grate and connecting the water line
Set the stone on the grate and connect the standpipe to the pump.
8Add water and test

Fill the reservoir, plug the pump into the GFCI outlet, and run it. Watch the water sheet evenly down every face. Adjust the flow to taste, and if one side runs heavy, re-check that the reservoir is level.

The finished basalt column fountain running, water sheeting down the stone into the hidden reservoir
Fill, run, and enjoy — the water disappears into the hidden reservoir.

Finish and enjoy

Hide the grate with a layer of decorative river pebbles, plant around the base, and your fountain looks as though the stone is rising straight out of the garden. Because the pieces sit by gravity, you can always lift the pebbles and grate later to reach the pump.

Keeping it running its best

Pondless fountains are low-maintenance: top up the reservoir as water evaporates, and keep the pump screen clear. For the complete routine, see our guide to maintaining your outdoor natural stone fountain. In freezing climates, drain and protect it for winter — see our winter-care guide for fountains with in-ground basins.

Quick answers

Is a pondless fountain safe around children and pets?

Yes. There is no open, standing water — the reservoir is buried and covered by the grate and decorative pebbles.

Where does the water go?

It recirculates: the pump sends it up through the stone, it sheets down the sides, drains through the grate, and returns to the hidden reservoir to be used again.

How much maintenance is there?

Very little. Top up the water as it evaporates, keep the pump screen clean, and winterize in freezing climates.

Can I install it myself?

Yes, with a helper. The excavation is a weekend job; the stone is the only heavy lift, so have an extra pair of hands to set it.
