Legacy Round Fire & Water Bowl in GFRC Concrete by Archpot
The Legacy Round Fire Water Bowl, with its perfect curves, versatile style and timeless elegance, will complete any design.
Order Archpot GFRC Concrete Color Samples Here. Shipped right to your door!
Ignition Options:
A. Manual Match-Lit Ignition:
All ARCHPOT Fire Pit tables are available with the Match-Lit Ignition Option, which allows you to ignite the Fire Pit by turning the Gas Key Valve and lighting the burner with a matchstick or a lighter

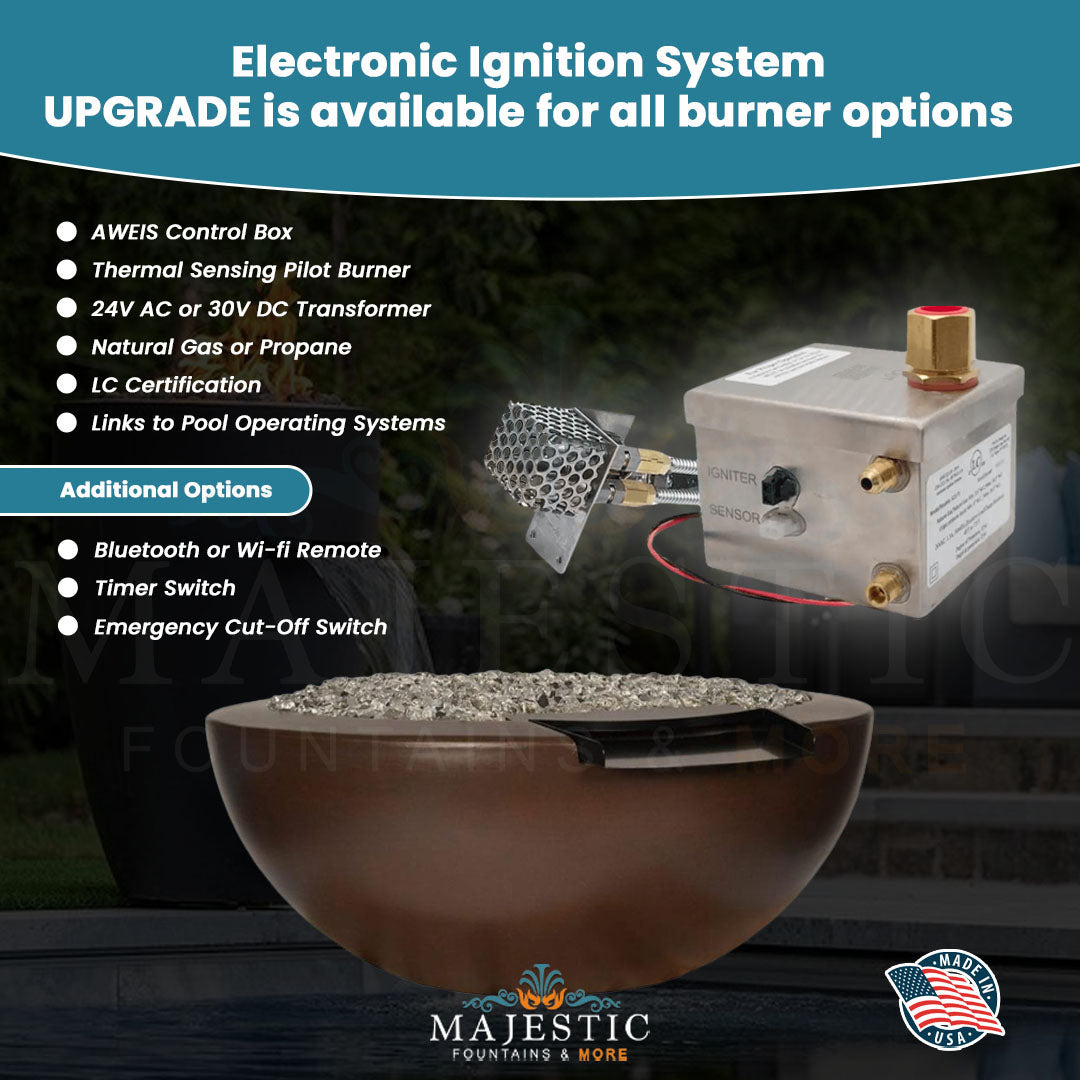

B. ARCHPOT Weather Beater Electronic Ignition:
The ultimate control for outdoor fire features, the ARCHPOT Weather Beater is powered by a state-of-the-art microprocessor and provides safe and sure control of ignition and operation. Built to withstand harsh outdoor conditions, the ARCHPOT Weather Beater constantly monitors your fire. It even relights it in the case of unusually high winds or rain, temporarily extinguishes it. This system uses commercial-grade components to ensure years of trouble-free operation and includes on-board diagnostics to report on the unit’s performance. Available for use with LP or Natural gas. Available with Standard Capacity up to 350K BTUs or High Capacity up to 490K BTUs.
Includes: WBECS Control Box 13V DC, Thermocouple Flame Sensor, 30’ Low Voltage Wire with Connectors.
C. Battery Powered Electronic Ignition:
The Battery Powered Electronic Ignition System was developed for use in portable Fire Pits and Fire Tables. With this system and a portable LP gas tank, you no longer need to invest in expensive gas lines and electrical wiring. After installation, a simple flip of a switch and your fire feature will ignite itself, monitor the flame and relight itself if ever the flame goes out.
Includes: Control Valve Box, Pilot Assembly, Waterproof Battery Pack (3 AAA Lithium Batteries), On/Off Switch and Stainless Steel Switch Plate (Switch must be mounted to Fire Table)
Options for Electronic Ignitions:
- Bluetooth Remote
- Electrical Dial Timer
- Emergency Shut-off Button (E-Stop)
- Safety Tower Post with Electrical Timer and E-Stop
Specifications:
| SKU |
Diameter |
Height |
Base Area |
Support Plate |
Burner/BTU |
Weight |
| FGLEGRD30X12-FW |
30" |
12" |
14" |
23.5" |
SS 12"/ 85K BTU
CrossFire 13"/ 120K BTU
|
120 lbs |
| FGLEGRD36X15-FW |
36" |
15" |
17" |
29.5" |
SS 18"/ 125K BTU
CrossFire 15.75"/ 180K BTU
|
150 lbs |
| FGLEGRD42X18-FW |
42" |
18" |
20" |
36" |
SS 24"/ 170K BTU
CrossFire 25"/ 320K BTU
|
200 lbs |
| FGLEGRD48X20-FW |
48" |
20" |
24" |
41.5" |
SS 24"/ 170K BTU
CrossFire 25"/ 320K BTU
|
295 lbs |
| Propane Enclosure Kit |
18"L x 18" W |
20" |
N/A |
N/A |
N/A |
220 lbs |

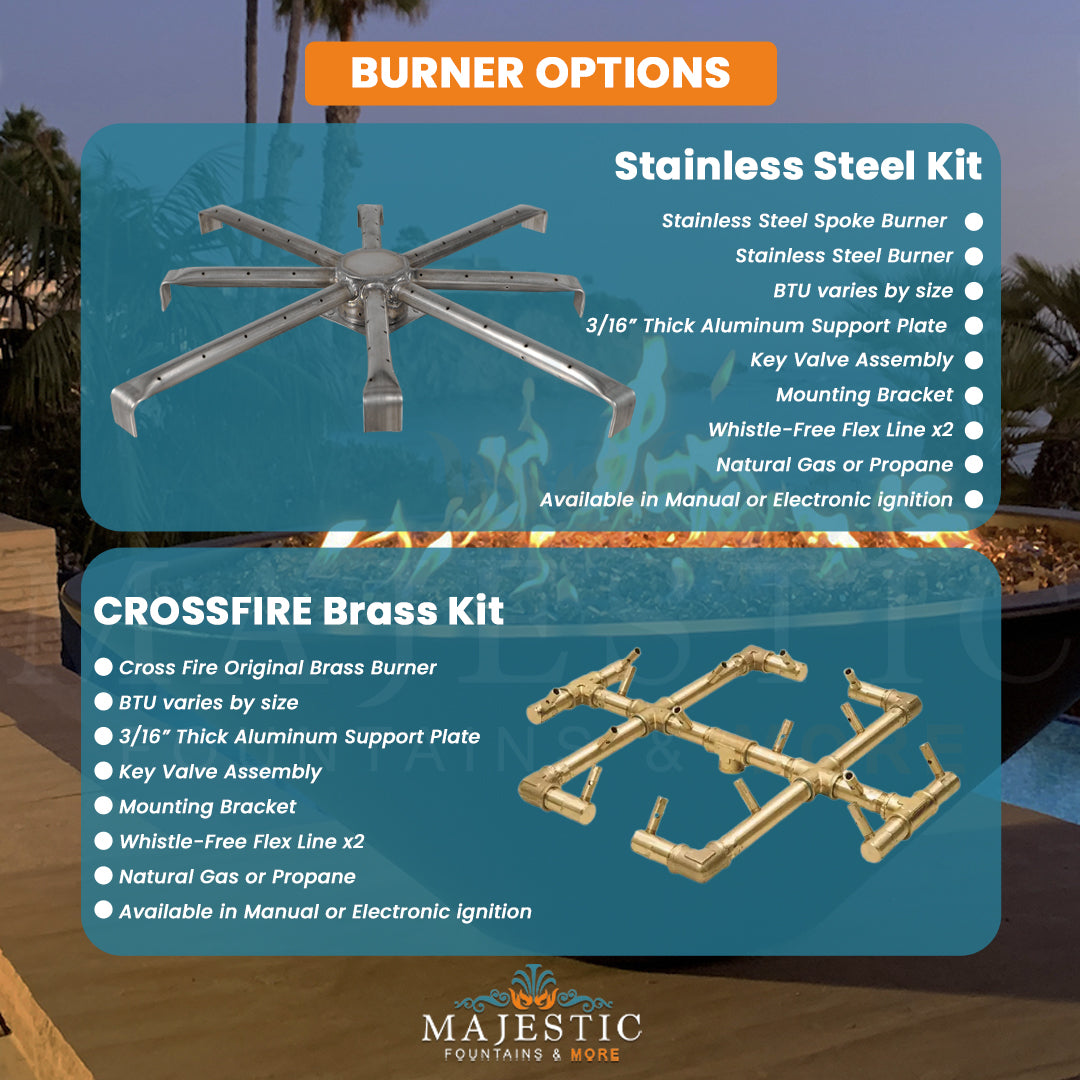

Burner Options:
|
Burner Options
|
Details
|
|
Stainless Steel Kit
|
- Stainless Steel Spoke Burner
- BTU varies by size
-
3/16” thick Aluminum Support Plate
- Key Valve Assembly
- Mounting Bracket
- Whistle-Free Flex Line x2
- Natural Gas or Propane (please specify)
- Available in Manual or Electronic ignition
|
|
CROSSFIRE Brass Kit
|
- Cross Fire Original Brass Burner
- BTU varies by size
- 3/16” thick Aluminum Support Plate
- Key Valve Assembly
- Mounting Bracket
- Whistle-Free Flex Line x2
- Natural Gas or Propane (please specify)
- Available in Manual or Electronic ignition
|
The Legacy Round Series - Fire Features comprises the following:
Legacy Round Fire Table
Legacy Round Fire Bowl
Legacy Round Fire & Water Bowl
Legacy Round Fire Vase and Legacy Round Tall Fire Vase
Legacy Round Fire & Water Vase and Legacy Round Tall Fire & Water Vase
Material
Glass-fiber reinforced concrete (GFRC)
GFRC Process
Concrete bowls incorporate a concrete-glass fibre mix, resulting in a lighter but structurally stronger bowl. These decorative pieces are beautifully finished with a hand-applied process that includes multiple stains and washes and includes a final wax seal. The wax seal provides a deep, lustrous finish and protection against fading and discoloration from the outdoor environment. The wax seal requires direct sunlight to finish the curing process. Paint and quick drying cures are not used as this would sacrifice the quality and beauty of the finished products.
Product Manuals:
Archpot Manual System Installation Guide
Archpot Weather Beater Electronic Ignition Manual
IMPORTANT: Installation must be done by a Licensed Technician.
Warranty: 1 year against manufacturing defects.
Shipping: We offer Free standard shipping on all our products. Usually ships on a pallet to any address in the Continental USA. The carrier will place your items curbside on your property but cannot assist with final placement. A Lift-gate charge may be applied for residential deliveries.
Manufacturing Lead Time: This is a Made-To-Order item, manufactured in the color specified on your order. The Manufacturing Lead time is approx 8 weeks.
Disclaimer:This Product is considered a Custom Order as it is custom made upon order. The Patina/ Stain chosen is hand applied to the Product along with finishing touches after it is manufactured in accordance with your order. The cancellation of a custom product will result in the forfeiture of the deposit.
Prop 65 Warning: For more information, go to www.P65Warnings.ca.gov.
