    Linear Burner Kit with Electronic Ignition System by Grand Effects

    Elevate your outdoor space with a high-performance fire feature designed for durability, reliability, and style. Constructed from premium 304 stainless steel, this burner kit is built to withstand even the harshest outdoor conditions—making it the perfect centerpiece for any patio, backyard, or entertaining area.

    CSA-certified, the burner delivers top-tier performance and safety. Available in multiple sizes and compatible with either natural gas or propane, this versatile system adapts to a wide range of installation needs.

    Smart Compatibility & Easy Control
    For added convenience, the system is designed for remote operation through a compatible home automation or pool controller (sold separately), offering seamless integration into your outdoor setup.

    Complete Kit Includes:

    • Burner assembly with support plate and mounting tabs
    • Flex gas lines and gas fitting adaptor
    • Propane kits include a propane adder for proper function

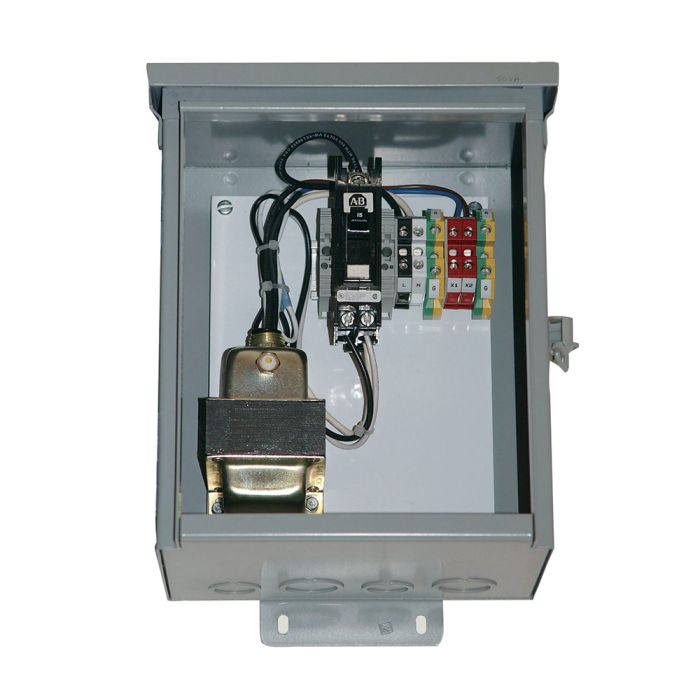

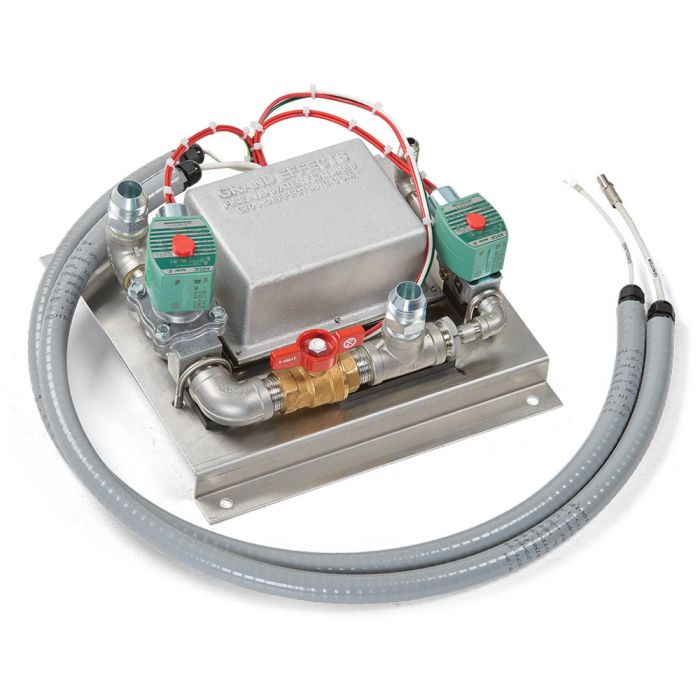

    • Sub-panel with inner-mount design for secure connections
    • Internal access for gas and electrical hookups

    Features:

    • Ignition Type: Electronic Ignition with SmartSense automated technology, create a mesmerizing fire backdrop for your outdoor space
    • Burner Size: Available in 8 Sizes to choose from
    • Material: High-grade stainless-steel construction
    • Burner Shape: Linear
    • Fuel Type: Compatible with Natural Gas or Propane fuel type
    • Made in the U.S.A.
    • Mounting location:
      • Inner - The subpanel is installed inside the cavity or pit. (Requires a larger pit)
      • Outer - The subpanel is installed outside the cavity or pit. (Requires subpanel to be mounted within 4' of pilot on exterior pit wall)

    Specifications:

    SKU Burner Trough Dimensions Type Voltage BTU

    LIAUT12xxM3

    LIAUT24xxM3

    		 36"L

    Inner: 45"L x 13.5"W x 12"D

    Outer: 61"L x 13.5"W x 20"D

    		 Automated 12V or 24V 125K

    LIAUT12xxM4

    LIAUT24xxM4

    		 48"L

    Inner: 57"L x 13.5"W x 12"D

    Outer: 73"L x 13.5"W x 20"D

    		 Automated 12V or 24V 157K

    LIAUT12xxM5

    LIAUT24xxM5

    		 60"L

    Inner: 70"L x 13.5"W x 12"D

    Outer: 86"L x 13.5"W x 20"D

    		 Automated 12V or 24V 189K

    LIAUT12xxM6

    LIAUT24xxM6

    		 72"L

    Inner: 82"L x 13.5"W x 12"D

    Outer: 98"L x 13.5"W x 20"D

    		 Automated 12V or 24V 221K

    LIAUT24xxM7

    LIAUT24xxM7

    		 84"L

    Inner: 94"L x 13.5"W x 12"D

    Outer: 110"L x 13.5"W x 20"D

    		 Automated 12V or 24V 253K

    LIAUT12xxM8

    LIAUT24xxM8

    		 96"L

    Inner: 107"L x 13.5"W x 12"D

    Outer: 123"L x 13.5"W x 20"D

    		 Automated 12V or 24V 286K

    LIAUT12xxM9

    LIAUT24xxM9

    		 108"L

    Inner: 119"L x 13.5"W x 12"D

    Outer: 135"L x 13.5"W x 20"D

    		 Automated 12V or 24V 318K

    LIAUT12xxM10

    LIAUT24xxM10

    		 120"L

    Inner: 131"L x 13.5"W x 12"D

    Outer: 147"L x 13.5"W x 20"D

    		 Automated 12V or 24V 350K


    Documents:

    DownloadLinear Burner Insert Manual

    IMPORTANT: Installation must be done by a licensed technician

    Warranty: 1 year against manufacturing defects.

    Shipping: We offer Free standard curbside shipping on this product to the 48 lower contiguous states. Usually ships on a pallet to any address in the Continental USA. The freight carrier will place your items curbside on your property but cannot assist with final placement.

    Manufacturing Lead Time: This is a Made-To-Order item, manufactured in the color specified on your order. The Manufacturing Lead time is approx 7-8 weeks.

    Disclaimer: This Product is considered a Custom Product and is custom-made upon order. Cancellation of a custom product will result in forfeiture of the deposit.

    Warning Prop 65 Warning: For more information, go to www.P65Warnings.ca.gov.
