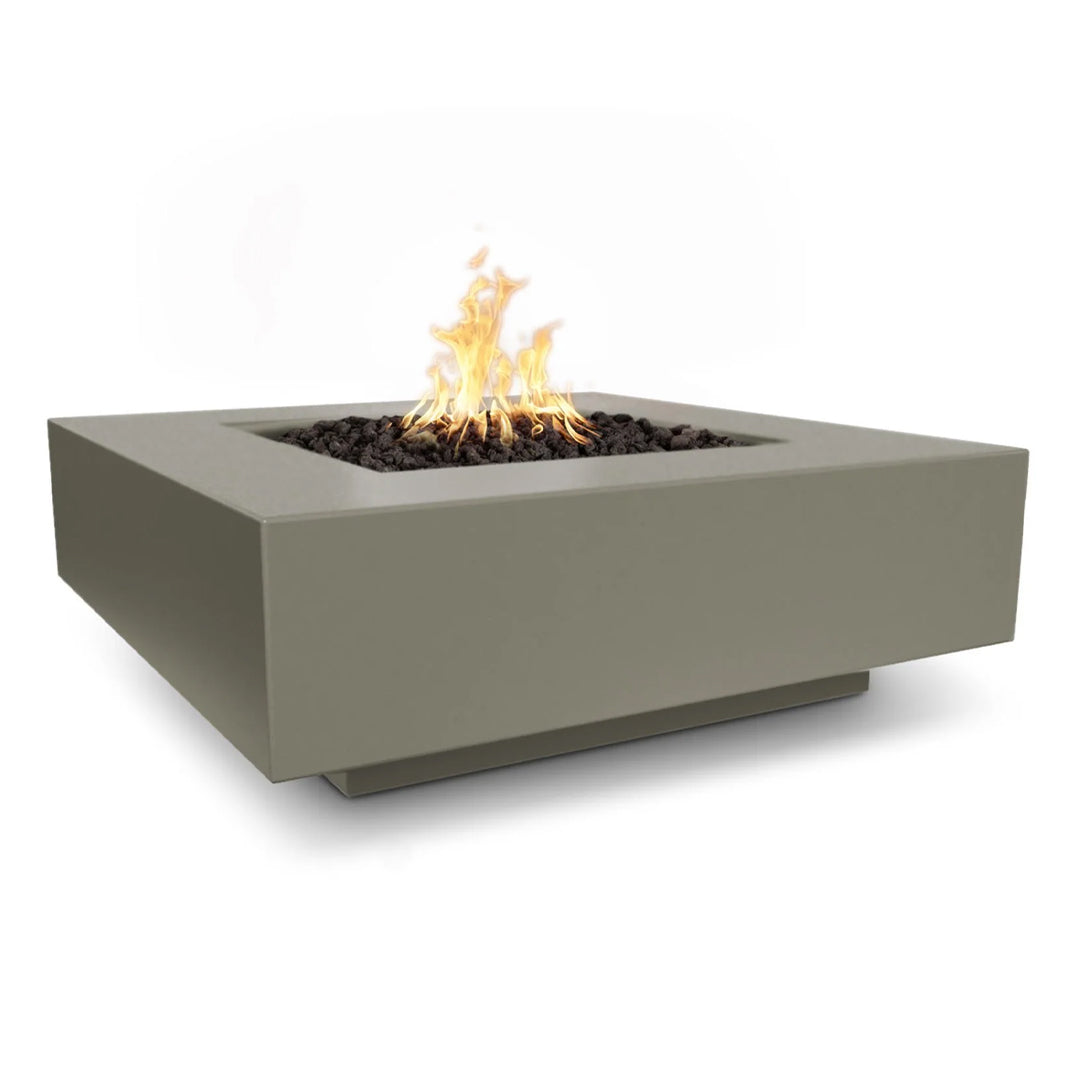

The Outdoor Plus Cabo Square Fire Pit in GFRC Concrete + Free Cover
The Cabo Fire Pit in GFRC Concrete by The Outdoor Plus is a simple square fire pit constructed of GFRC concrete. This material is strong and durable and comes in various color finishes to jazz up your space. Choose from 2 sizes available.
Proudly manufactured in the U.S.A.
Individually handcrafted. Because of its handmade nature, slight variations in color and texture may occur.
Order The Outdoor Plus GFRC Concrete Color Samples Here. Shipped right to your door!
Free Cover: To prolong the life of your Fire feature, we are offering you a free Water-resistant Fire Pit Cover absolutely free from us. It will help protect your Fire Pit and keep your Fire Media dry.

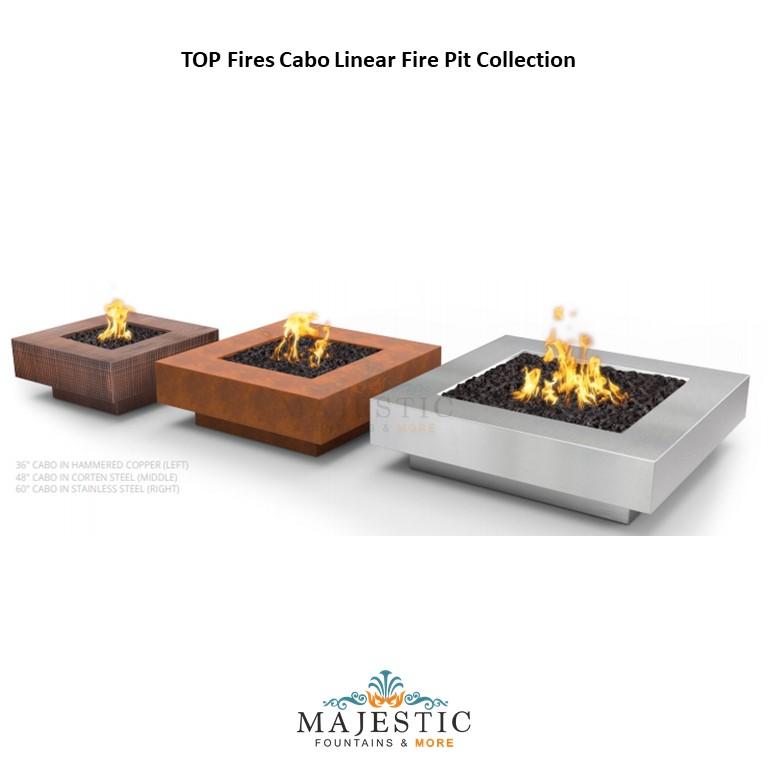

The TOP Fires Cabo Square Fire Pit Collection in:
Features:
- Constructed of durable Glass Fiber Reinforced Concrete
- Finish: Available in several TOP GFRC colors to choose from
- Comes with Stainless Steel Fire Pan, Burner, Key Valve, Key, and Hoses

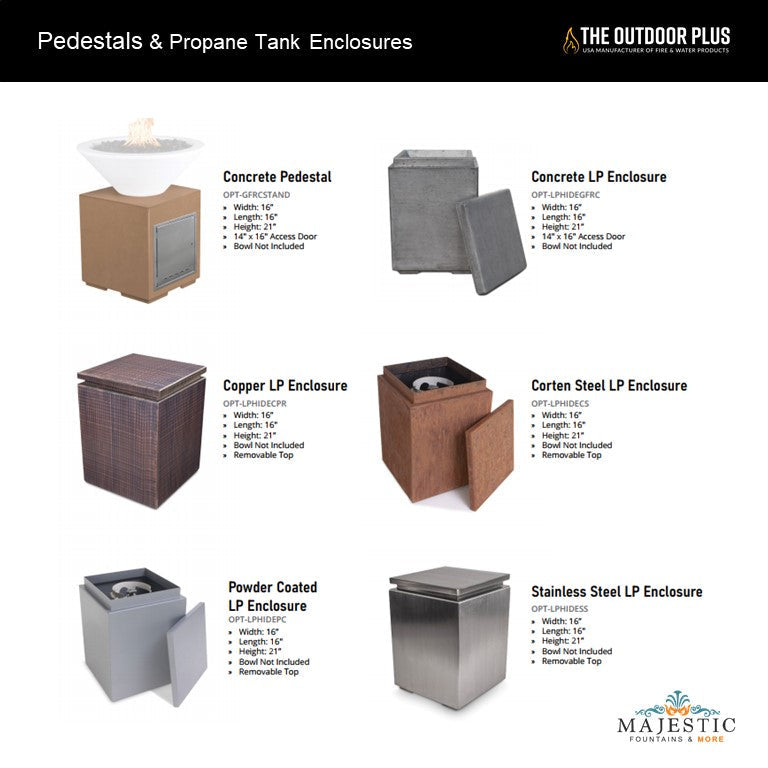

- Does not have propane tank storage
- Includes all the Lava Rocks each model holds.
- Ignition Type:
- Electronic Ignition
- Match Lit Ignition

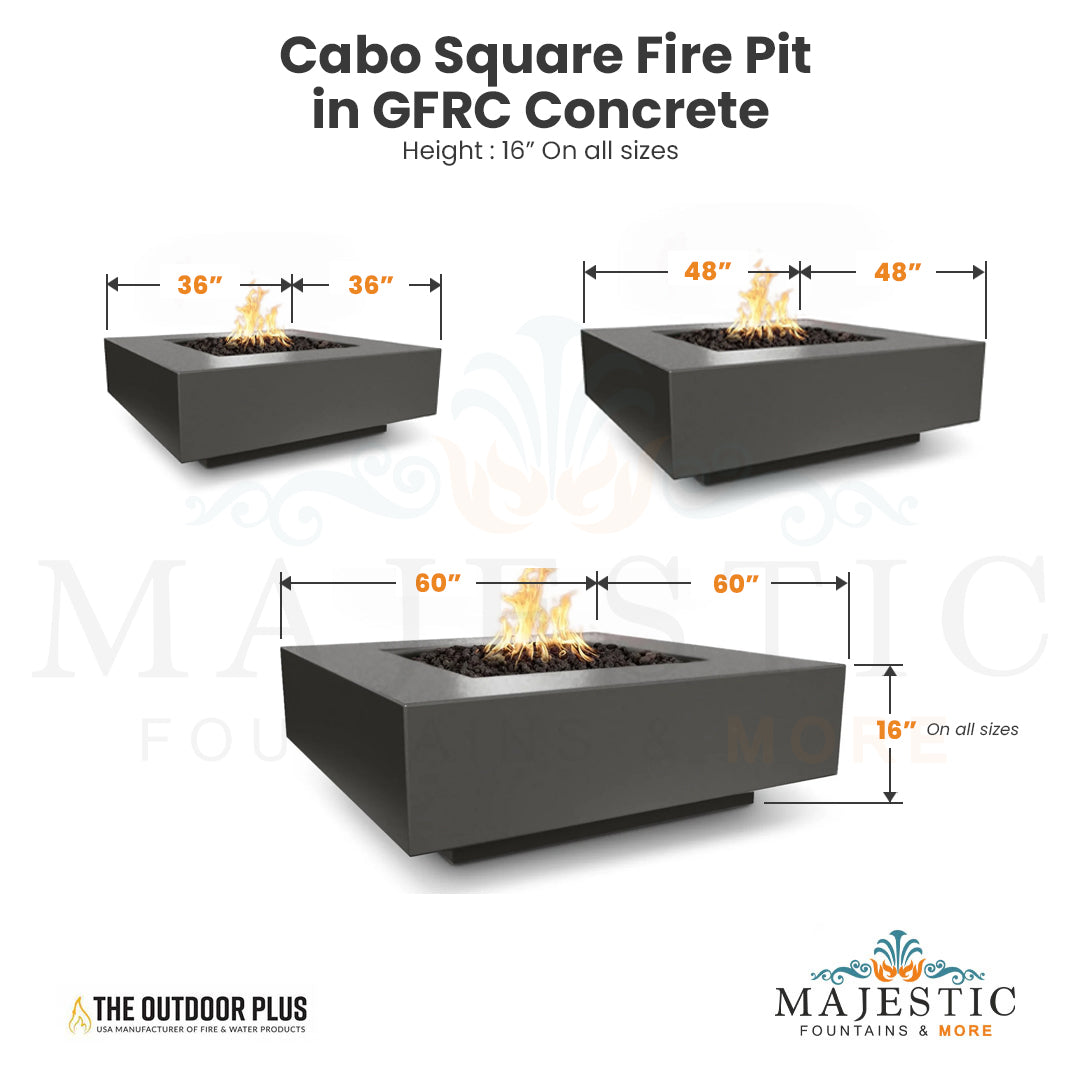

- Size: Available in 36" or 48".
- Fuel: Natural Gas or Propane
- Heat Output: 65K BTU
Burner Options:
Stainless Steel Burner: Burners constructed of stainless steel are highly resistant to corrosion even when exposed to the outdoor elements. The heat-resistant quality of stainless steel burners enables your fire pit to withstand the high temperatures of raging fire flames.
Stainless Steel Burner with Brass Bullets: Patented by The Outdoor Plus, the Bullet Burners are designed to produce taller and robust flames. Small bullet-like brass structures are incorporated with a high-grade stainless steel burner in order to produce concentrated flames while using less fuel. The Bullet Burners also have a higher BTU. The stainless steel burner with brass bullets is a cost-efficient upgrade to the regular burners.
All Brass Bullet Burner: The All Brass Bullet burner is the perfect burner option if you seek to achieve a premium look for your fire feature. Enhance your Firepit experience with our Patented Bullet Burner. Feel Your Flame. Less Gas. More Flames. The Brass Bullet Burners have higher BTUs compared to the regular Stainless Steel burners. Both the Burner as well as the Bullets are constructed of high-quality Brass material. The Brass Bullet Burner exudes elegance and excellence with its luxurious look and out-class performance due to the Flat flame technology, which enables the burner to produce more flames using less fuel.

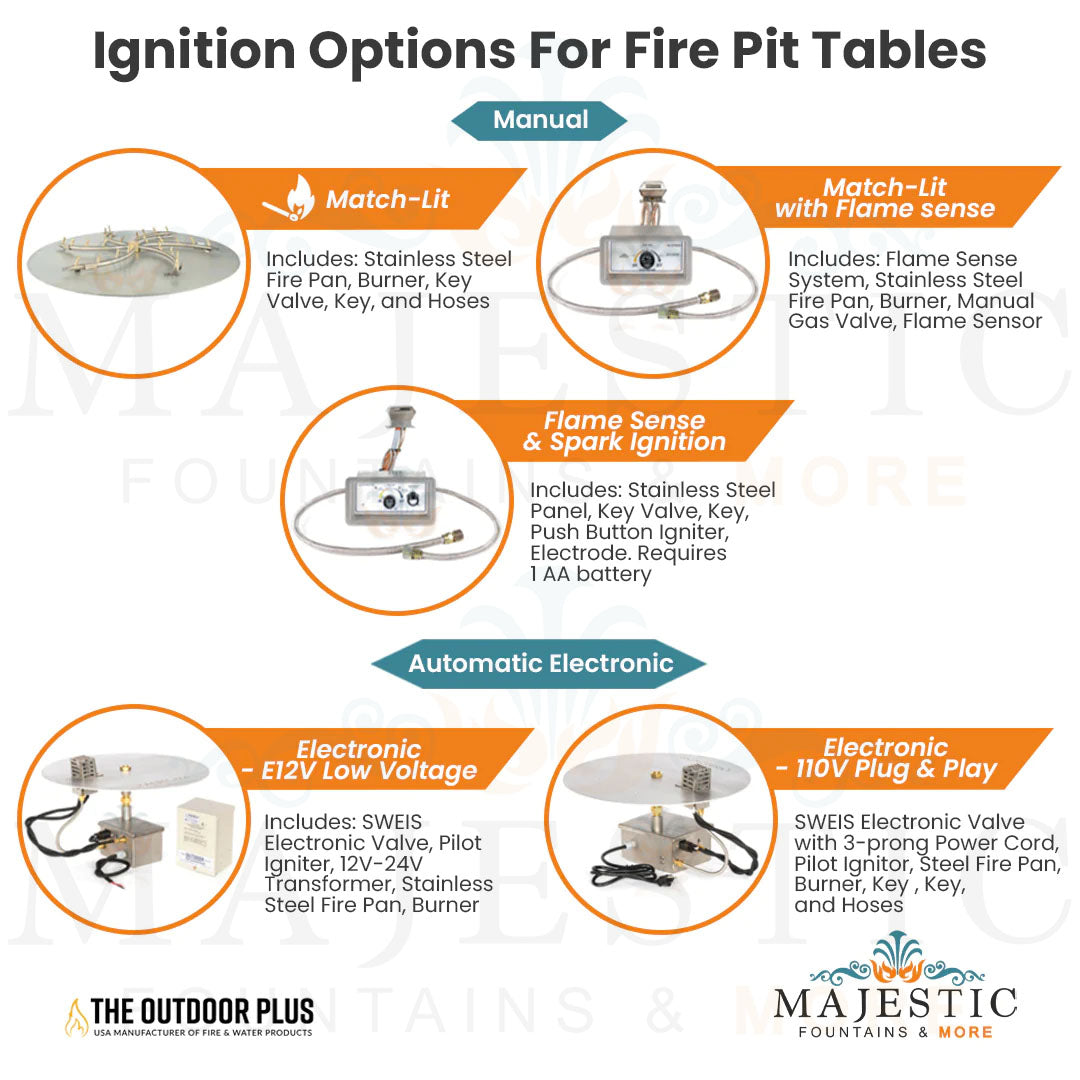

Ignition Options:
Manual:
a. Match-Lit: All TOP Fire Pit tables are available with the Match-Lit Ignition Option, which allows you to ignite the Fire Pit by turning the Gas Key Valve and lighting the burner with a matchstick or a lighter.
b. Match-Lit with Flame sense: The Match-Lit with Flame sense system comes with a thermocouple flame sensor to ensure the feature is lit properly and stops gas flow if the flame is ever blown out.
c. Flame Sense & Push Button Spark Ignitor: The Flame Sense & Spark Ignition system includes a push button spark Ignitor along with the thermocouple flame sensor. This system requires 1 AA Battery to operate.
Automatic Electronic:
a. Electronic - E12V Low Voltage: The E12V compact system can be controlled by a pool controller, remote control, or home automated systems to provide effortless control of the fire feature. This LC Certified unit is compatible with 12VAC only (12V to 110V transformers are available) and features a glow plug igniter designed to withstand the elements.
b. Electronic - 110V Plug & Play: The 110V Smart Weather Electronic Ignition System (SWEIS) Kits come with an Electronic Valve with a 3-Prong Plug and a Pilot Igniter. TOP pilots use a hot surface igniter (HSI) for pilot ignition and a thermocouple flame sensor to ensure the feature is lit properly and stops gas flow if the flame is ever blown out.

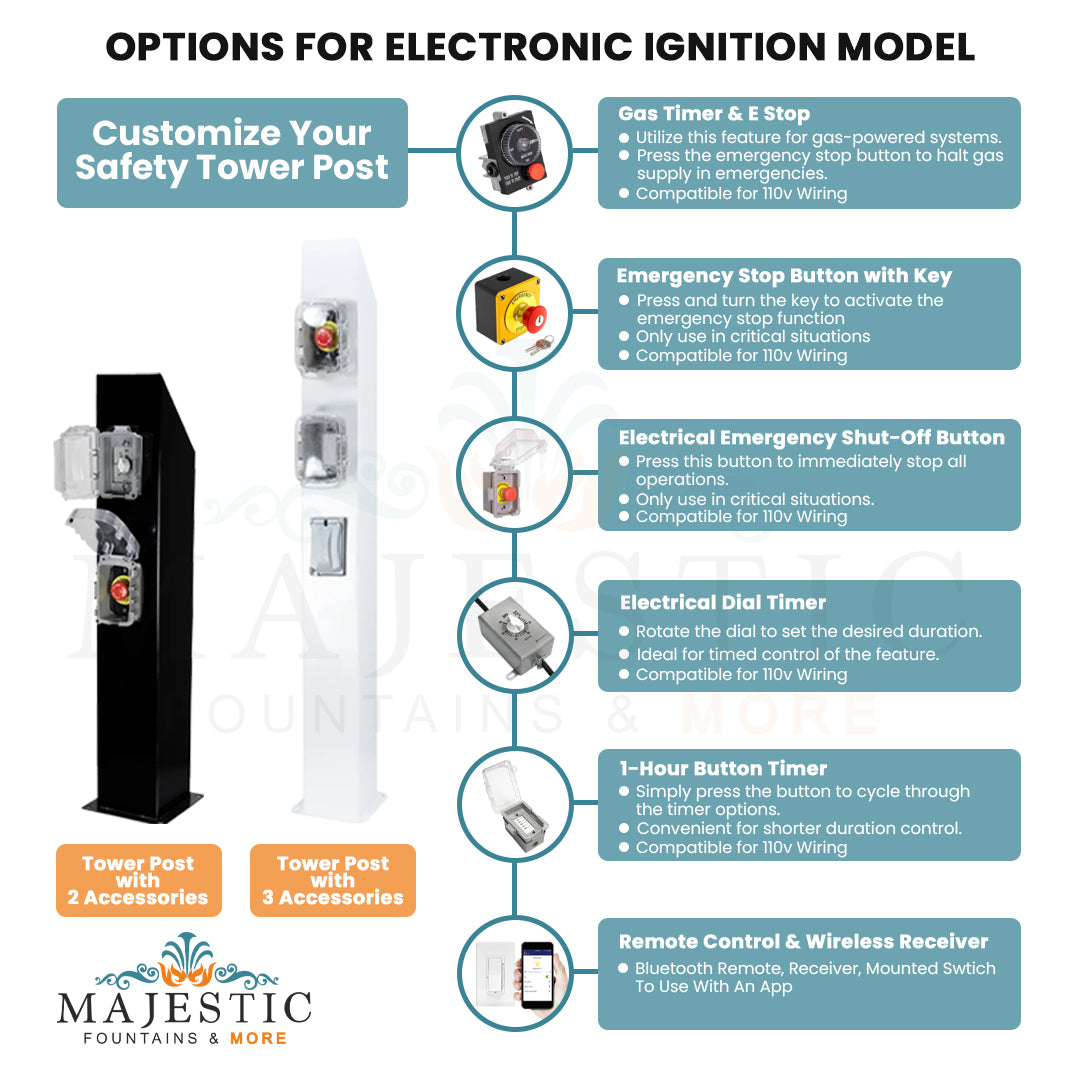

Add-on Options for Automatic Electronic:
Accessories (can be used individually or added to a Safety Tower) :
-
Gas Timer & E-Stop: A gas shut-off device with a timer that comes with a built-in emergency stop.
-
Emergency Stop Button with Key: Includes the emergency stop button with a lock and key to activate the E-stop function.
-
Electrical Emergency Shut-Off Button: Emergency stop button with an outdoor-rated electrical box and cover to stop all operations.
-
Electrical Dial Timer: The electrical dial timer for time-controlled use of the fire feature. It has a 1-hour max runtime.
-
1-Hour Button Timer: In-Wall 1-Hour Timer adds convenience and ease to your outdoor fire and water features. To use it, you simply have to press the button to cycle through the timer options. Once you’ve selected the desired time, the timer takes care of the rest.
-
Remote Control & Wireless Receiver: The remote control and wireless receiver are accompanied by an outdoor-rated Electrical Box. The kit includes a remote, a receiver, and a switch
Safety Tower Post:
The Safety Tower Post by TOP is a perfect addition when you want to have 2 or more accessories added to your fire feature. It can be installed at a safe distance from the fire feature for easy access.
-
Safety Tower Post with 2 accessories: 5.25"L x 7.25"W x 36"H
-
Safety Tower Post with 3 accessories: 5.25"L x 7.25"W x 48"H
Specifications:
| SKU |
Available in Ignition |
Dimensions |
Height |
Burning Area |
Burner |
Weight |
Sugg. Fire Glass |
|
OPT-CBSQ36
|
Manual and Electronic |
36" x 36" |
16" |
20" x 20" |
8" |
245 lbs. |
50 lbs. |
|
OPT-CBSQ48
|
Manual and Electronic |
48" x 48" |
16" |
28" x 28" |
12" |
355 lbs. |
75 lbs. |
Product Manuals:
TOP Cabo Square Fire Pit in GFRC Concrete - Specification Sheet
TOP Fires Pit Match Lit Ignition Manual
TOP Fires Pit Match Lit with Flame Sense Ignition Manual
TOP Fires Flame Sense with Spark Ignition Manual
TOP Fire Pit Low Voltage 12V Electronic Ignition Manual
TOP Fire Pit 110V Plug-n-Play Ignition Manual
IMPORTANT: Installation must be done by a Licensed Technician.
Warranty: 1 year against manufacturing defects.
Shipping: We offer Free standard curbside shipping on this product to the 48 lower contiguous states. Usually ships on a pallet to any address in the Continental USA. The freight carrier will place your items curbside on your property but cannot assist with final placement.
Manufacturing Lead Time: This is a Made-To-Order item, manufactured in the color specified on your order. Manufacturing Lead time is approx 4-5 weeks.
Disclaimer: This product is considered a Custom Order as it is custom made upon order. The Patina/ Stain chosen is hand applied to the Product along with finishing touches after it is manufactured in accordance with your order. Cancellation of a custom product will result in forfeiture of the deposit.
Prop 65 Warning: For more information, go to www.P65Warnings.ca.gov.
